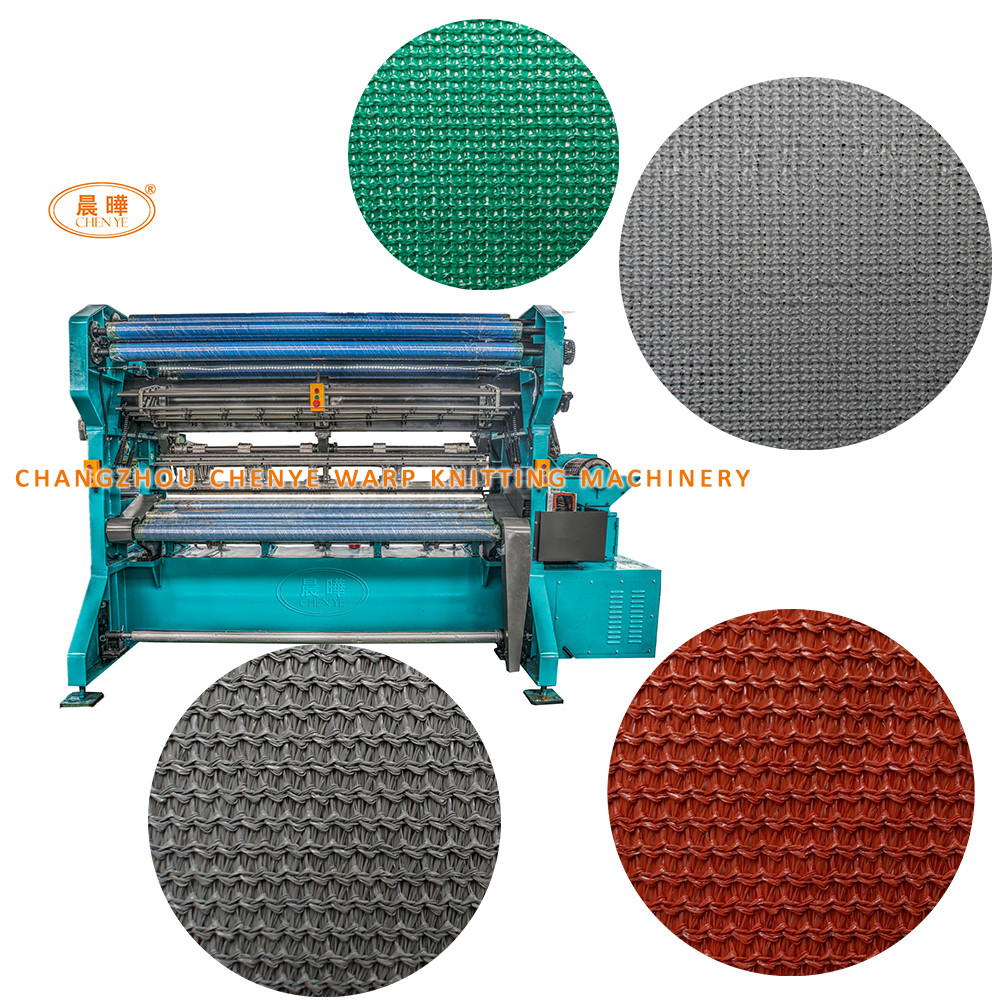

Warp Knitting Machine for Industrial Mesh Production
Place of Origin:
China , Jiangsu
Brand Name:
Chenye
Certification:
ISO ,CE, TUV
Model Number:
SRCA
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
40HQ/Set
Delivery Time:
60 days after deposit payment
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
25 sets per month
Inquiry Now
Get A Quote
Specifications
Product Type:
Shade Net Making Machine
Color:
Customized
Working Width:
135"-260"
Speed:
200-450rpm
Size:
2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Warranty:
1Year(lifelong Technical Support)
Product Description
Warp Knitting Machine for Industrial Mesh Production
Industrial mesh products are used in many applications, including protection, separation, packaging, transportation, and material handling.Different industrial applications require different mesh specifications. Some products may focus on strength, while others may require flexibility, lightweight construction, or specific mesh openings.
Warp knitting machinery provides a continuous production method for manufacturing different industrial mesh products.
When selecting equipment, manufacturers should consider the final application, yarn material, mesh design, working width, and expected production volume.
Machine Parameters
| Type | Size (L*W*H) | Weight (Kg) | Power (KW) | Speed (rpm) |
|---|---|---|---|---|
| SRCA-135 | 4300*2200*2700 | 4700 | 3 | 200-530 |
| SRCA-150 | 4900*2200*2700 | 5000 | 3 | 200-530 |
| SRCA-180 | 6100*2200*2700 | 7500 | 5.5 | 200-530 |
| SRCA-220 | 7300*2200*2700 | 9000 | 5.5 | 200-530 |
| SRCA-260 | 8200*2200*2700 | 11000 | 7.5 | 200-480 |
| SRCA-340 | 10300*2200*2700 | 14000 | 11 | 200-450 |
Applications & Purpose
Shade net machines produce specialized netting material used in agricultural settings, nurseries, gardens, and outdoor areas to create controlled environments with optimal growing conditions.
Changzhou Chengye Warp Knitting Machinery Co., Ltd. provides different warp knitting machine models for industrial mesh production.By selecting equipment based on the actual product requirements, manufacturers can develop production lines suitable for different industrial mesh applications.
Primary Benefits:
- Sunlight Protection: Reduces sunlight intensity to prevent overheating and create favorable microclimates
- Temperature Control: Maintains lower temperatures by filtering sunlight for plant, animal, and human comfort
- Wind and Dust Barrier: Acts as windbreak to reduce wind speed and prevent dust in sensitive areas
Technical Support & Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.
Packing & Shipping
We ensure complete safety and security of all goods during packing and shipping processes.
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters for machinery, raw materials, and finished products storage.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials with adjustable machine settings.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
