Shade Net Making Machine for Horticultural Applications

1 set
MOQ
Negotiation
Price
Shade Net Making Machine for Horticultural Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Product Type: Shade Net Making Machine
Color: Customized
Working Width: 135"-260"
Speed: 200-450rpm
Size: 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Warranty: 1Year(lifelong Technical Support)
Basic Infomation
Place of Origin: China , Jiangsu
Brand Name: Chenye
Certification: ISO ,CE, TUV
Model Number: SRCA
Payment & Shipping Terms
Packaging Details: 40HQ/Set
Delivery Time: 60 days after deposit payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 25 sets per month
Product Description
Shade Net Making Machine for Horticultural Applications

    Shade nets are widely used in greenhouses, nurseries, gardens, and agricultural fields. They help control sunlight exposure and create a more suitable growing environment for plants.


    Different crops and applications may require different shade net specifications. Therefore, manufacturers need equipment that can meet different product requirements.Warp knitting machines can be used to produce shade nets with different mesh structures and widths.

Product Specifications
  • Number of bars: 2~8
  • Working Width: 135", 150", 170", 220", 240", 260"
  • Take-up manner: 2 rollers with friction drive, center shaft drive, separately-standing
  • Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
  • Needle Type: Block latch needle, individual latch needle, or Compound needle
  • Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Machine Parameters
Type Size (L*W*H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300*2200*2700 4700 3 200-530
SRCA-150 4900*2200*2700 5000 3 200-530
SRCA-180 6100*2200*2700 7500 5.5 200-530
SRCA-220 7300*2200*2700 9000 5.5 200-530
SRCA-260 8200*2200*2700 11000 7.5 200-480
SRCA-340 10300*2200*2700 14000 11 200-450

    Changzhou Chengye Warp Knitting Machinery Co., Ltd. provides shade net making equipment for agricultural and horticultural applications.When selecting a machine, manufacturers should consider the target shade net, yarn material, fabric width, mesh structure, and production capacity.


    With suitable production equipment, manufacturers can develop different shade net products for agricultural and horticultural markets.

Product Images

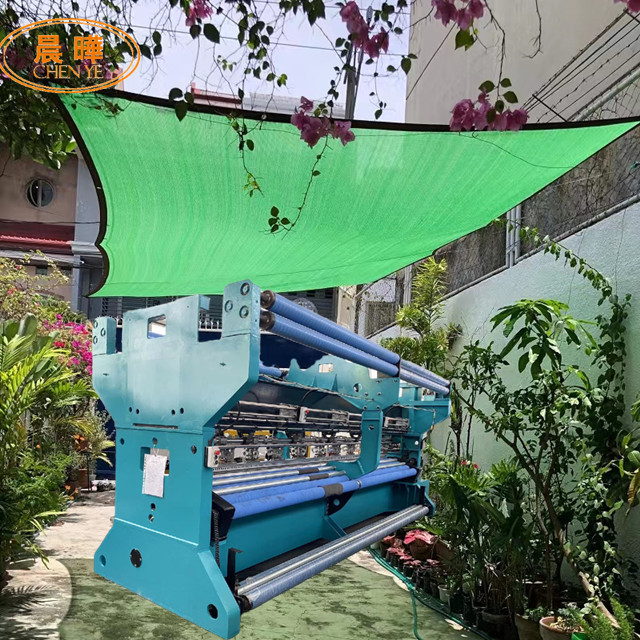

Shade Net Making Machine for Horticultural Applications

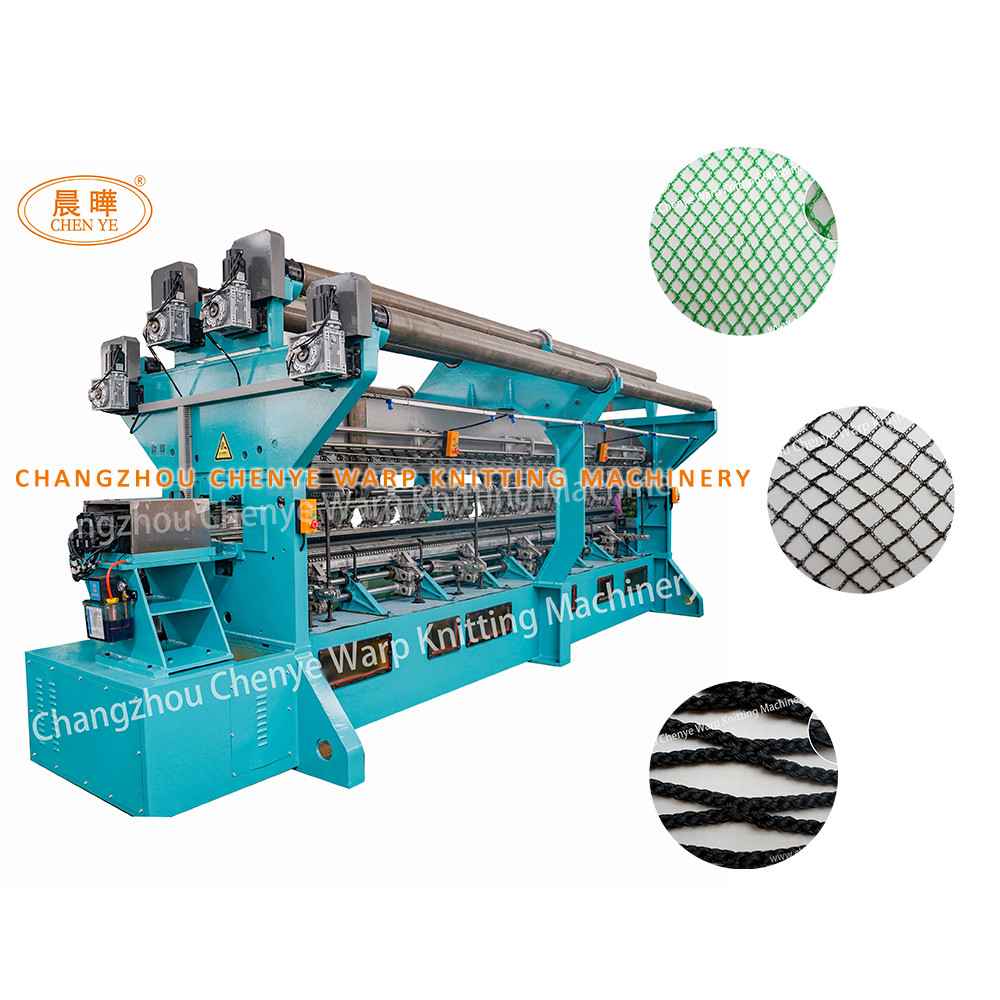

Shade Net Making Machine for Horticultural Applications

Technical Support & Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.
Our Services Include:
  • Information and troubleshooting assistance
  • Software and hardware upgrades
  • Installation and maintenance services
  • Technical advice and guidance
  • Parts and accessories replacements
Our team of qualified technicians provides on-site service for complex repairs and maintenance, ensuring your machine operates at peak efficiency
Packing & Shipping
We ensure complete safety and security of all goods during packing and shipping processes.
Professional packing and shipping of machinery
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters for machinery, raw materials, and finished products storage.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials with adjustable machine settings.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
