Name: Warp Knitting Equipment for Lightweight Mesh Products
Brand: Changzhou Chenye Warp Knitting Machinery Co., Ltd.
SKU: SRCA
Price: 124999.07 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Type: Shade Net Making Machine

Color: Customized

Working Width: 135"-260"

Speed: 200-450rpm

Size: 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m

Warranty: 1Year(lifelong Technical Support)

Basic Infomation

Place of Origin: China , Jiangsu

Brand Name: Chenye

Certification: ISO ,CE, TUV

Model Number: SRCA

Payment & Shipping Terms

Packaging Details: 40HQ/Set

Delivery Time: 60 days after deposit payment

Payment Terms: L/C,T/T,Western Union

Supply Ability: 25 sets per month

Gallery

Warp Knitting Equipment for Lightweight Mesh Products

Product Description

Warp Knitting Equipment for Lightweight Mesh Products

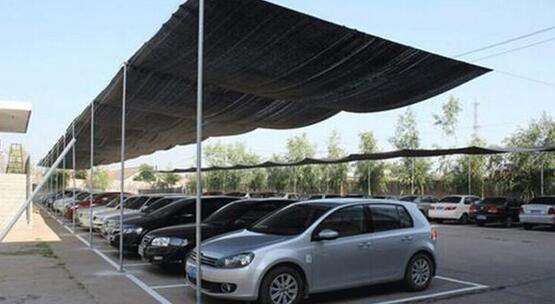

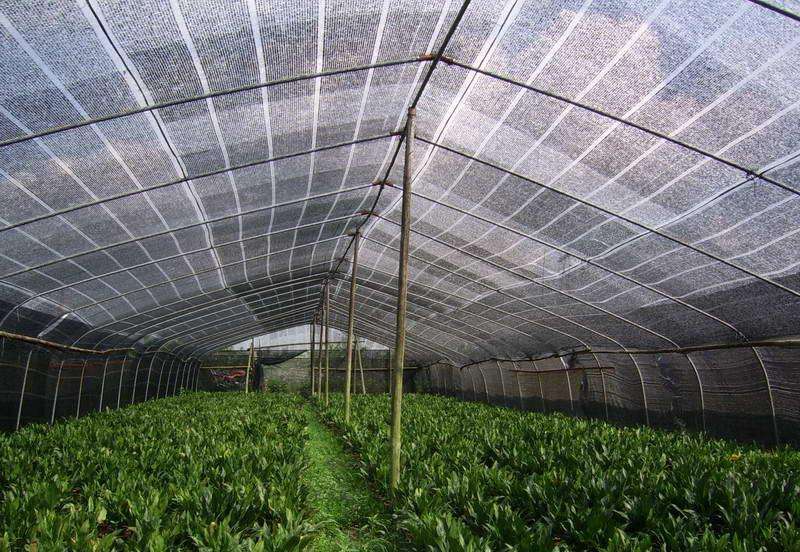

Not every mesh product requires a heavy or dense structure. Many applications use lightweight mesh fabrics because they need good flexibility, ventilation, or easy handling.Lightweight mesh products can be used in agriculture, gardening, packaging, protective applications, and other fields.

Warp knitting machines provide manufacturers with a continuous production method for producing different lightweight mesh structures. Machine selection should be based on the final product rather than simply focusing on machine speed.Important factors include yarn type, mesh opening, fabric width, machine configuration, and production requirements.

Product Specifications

Number of bars: 2~8
Working Width: 135", 150", 170", 220", 240", 260"
Take-up manner: 2 rollers with friction drive, center shaft drive, separately-standing
Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
Needle Type: Block latch needle, individual latch needle, or Compound needle
Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18

Machine Parameters

Type	Size (LWH)	Weight (Kg)	Power (KW)	Speed (rpm)
SRCA-135	430022002700	4700	3	200-530
SRCA-150	490022002700	5000	3	200-530
SRCA-180	610022002700	7500	5.5	200-530
SRCA-220	730022002700	9000	5.5	200-530
SRCA-260	820022002700	11000	7.5	200-480
SRCA-340	1030022002700	14000	11	200-450

Guide bars play a crucial role in warp knitting technology. They guide yarns around the needles and determine the fabric structure being produced.Each guide bar performs specific lateral and swinging movements according to a predetermined pattern. Different guide bar arrangements can create various net structures, mesh sizes, and fabric designs.

Modern warp knitting machines may use multiple guide bars to achieve complex textile structures. Precision manufacturing ensures smooth operation and accurate yarn placement.

Proper maintenance of guide bars helps improve machine efficiency and reduce yarn breakage. As a result, guide bars are considered one of the most important components in warp knitting production.

Product Images

Changzhou Chengye Warp Knitting Machinery Co., Ltd. provides different machine models for various mesh manufacturing applications.Customers can communicate their target product specifications with the technical team before selecting equipment. This can help determine a machine configuration that is better suited to the planned production.For manufacturers developing lightweight mesh products, appropriate warp knitting machinery can provide a flexible foundation for continuous production.

Technical Support & Services

We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.

Our Services Include:

Information and troubleshooting assistance
Software and hardware upgrades
Installation and maintenance services
Technical advice and guidance
Parts and accessories replacements

Our team of qualified technicians provides on-site service for complex repairs and maintenance, ensuring your machine operates at peak efficiency.

Packing & Shipping

We ensure complete safety and security of all goods during packing and shipping processes.

Frequently Asked Questions

What is the output of shading net making machine?

Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.

How much space needed to set up a shading net production line?

A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters for machinery, raw materials, and finished products storage.

How many kinds of shading net can be produced by rascheal warp knitting machine?

Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.

Are the machines customizable for different net specifications?

Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials with adjustable machine settings.

What types of shading nets material can be made with these machines?

Primary material is HDPE, with some shading nets using AL and PET materials.

Are there any special skills required to operate the machine?

Operating requires training for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
