Warp Knitting Machines for Hail Protection and Crop Protection Nets

1 set
MOQ
Negotiation
Price
Warp Knitting Machines for Hail Protection and Crop Protection Nets
Features Gallery Product Description Request A Quote
Features
Specifications
Product Type: Shade Net Making Machine
Color: Customized
Working Width: 135"-260"
Speed: 200-450rpm
Size: 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Warranty: 1Year(lifelong Technical Support)
Highlight:

warp knitting machine for hail protection

,

crop protection net making machine

,

shade net warp knitting machine
Basic Infomation
Place of Origin: China , Jiangsu
Brand Name: Chenye
Certification: ISO ,CE, TUV
Model Number: SRCA
Payment & Shipping Terms
Packaging Details: 40HQ/Set
Delivery Time: 60 days after deposit payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 25 sets per month
Product Description
Warp Knitting Machines for Hail Protection and Crop Protection Nets
Product Overview

    Crop protection has become an increasingly important part of modern agriculture. In many growing environments, farmers use protective netting to reduce the impact of weather conditions, birds, insects, and other external factors.


    Hail protection nets are designed to provide physical protection for crops and fruit trees. These products require a stable and uniform mesh structure, making professional warp knitting equipment an important part of the manufacturing process.


    Warp knitting machines can be used to produce different types of crop protection nets according to the required mesh design and product specifications.

Technical Specifications
Number of Bars: 2~8
Working Width: 135", 150", 170", 220", 240", 260"
Take-up Manner: 2 rollers with friction drive, center shaft drive, separately-standing
Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
Needle Type: Block latch needle, individual latch needle, or Compound needle
Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Machine Parameters
Type Size (L*W*H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300*2200*2700 4700 3 200-530
SRCA-150 4900*2200*2700 5000 3 200-530
SRCA-180 6100*2200*2700 7500 5.5 200-530
SRCA-220 7300*2200*2700 9000 5.5 200-530
SRCA-260 8200*2200*2700 11000 7.5 200-480
SRCA-340 10300*2200*2700 14000 11 200-450

     The machine configuration can be selected based on the width of the finished net, yarn material, mesh structure, and production requirements. This allows manufacturers to develop products for different agricultural markets.


    Changzhou Chengye Warp Knitting Machinery Co., Ltd. provides warp knitting machinery for various net production applications. Customers can communicate their target product requirements before selecting equipment.For manufacturers entering the agricultural protection market, producing consistent net products is important. Suitable machinery can help support continuous production and maintain a stable manufacturing process.With the growing use of agricultural protection products, professional warp knitting machines provide an effective equipment solution for manufacturers producing crop protection and hail protection nets.

Product Images

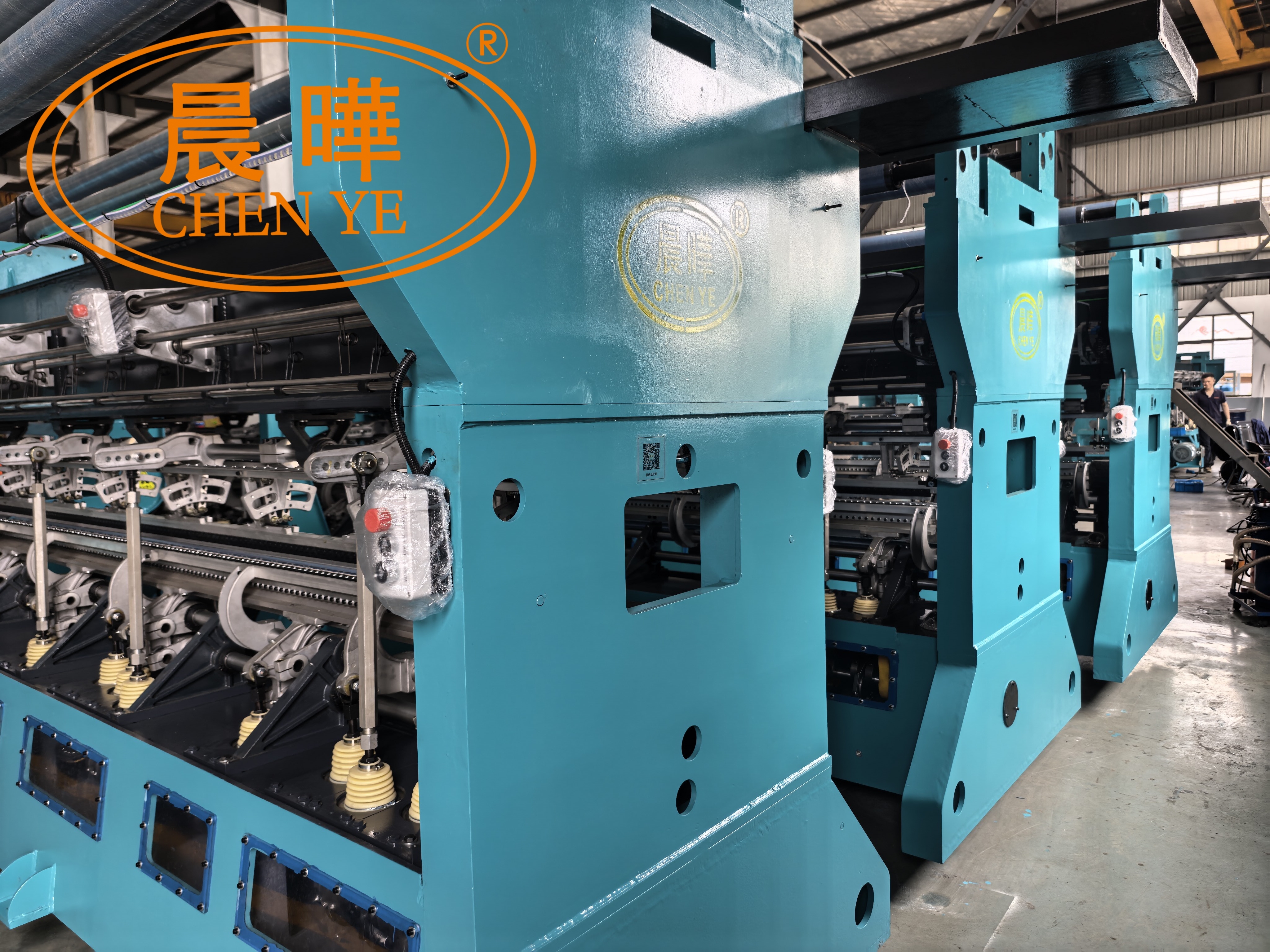

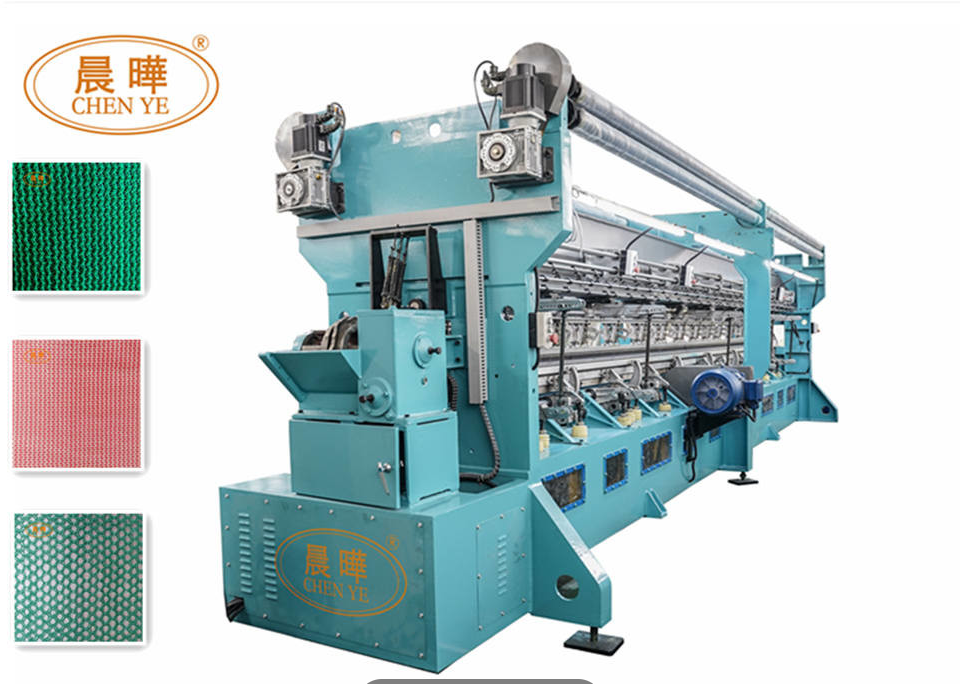

Shade cloth production machine overview Close-up view of net making machine components
Technical Support and Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.
  • Information and troubleshooting assistance
  • Software and hardware upgrades
  • Installation and maintenance services
  • Technical advice and guidance
  • Parts and accessories replacements
We also provide on-site service for complex repairs and maintenance. Our team of highly qualified technicians can help with any technical problems or adjustments needed.
Technical support team at work
Packing and Shipping
We ensure the safety and secure packaging of all goods during transportation.
Secure packaging of shading net machine
Shipping and logistics preparation
Frequently Asked Questions
1. What is the output of shading net making machine?
Output depends on machine working width and net specifications, typically ranging from 500-1000KG per 24 hours.
2. How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters. Space requirements include machine footprint plus storage for raw materials and finished products.
3. How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
4. Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials. Machine settings can be adjusted to meet specific shading requirements.
5. What types of shading nets material can be made with these machines?
Shading nets are primarily made from HDPE material, with some specialized nets using AL and PET materials.
6. Are there any special skills required to operate the machine?
Operating a shading net making machine requires training for optimal performance. Manufacturers provide training sessions and manuals to guide operators through setup, operation, and maintenance procedures.
