Understanding the Role of Guide Bars in Warp Knitting Machines

1 set
MOQ
Negotiation
Price
Understanding the Role of Guide Bars in Warp Knitting Machines
Features Gallery Product Description Request A Quote
Features
Specifications
Product Type: Shade Net Making Machine
Color: Customized
Working Width: 135"-260"
Speed: 200-450rpm
Size: 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Warranty: 1Year(lifelong Technical Support)
Highlight:

warp knitting machine guide bars

,

shade net machine guide components

,

warp knitting guide bar function
Basic Infomation
Place of Origin: China , Jiangsu
Brand Name: Chenye
Certification: ISO ,CE, TUV
Model Number: SRCA
Payment & Shipping Terms
Packaging Details: 40HQ/Set
Delivery Time: 60 days after deposit payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 25 sets per month
Product Description
Understanding the Role of Guide Bars in Warp Knitting Machines
Product Specifications
Number of bars: 2~8
Working Width: 135", 150", 170", 220", 240", 260"
Take-up manner: 2 rollers with friction drive, center shaft drive, separately-standing
Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
Needle Type: Block latch needle, individual latch needle, or Compound needle
Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Machine Parameters
Type Size (L*W*H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300*2200*2700 4700 3 200-530
SRCA-150 4900*2200*2700 5000 3 200-530
SRCA-180 6100*2200*2700 7500 5.5 200-530
SRCA-220 7300*2200*2700 9000 5.5 200-530
SRCA-260 8200*2200*2700 11000 7.5 200-480
SRCA-340 10300*2200*2700 14000 11 200-450

    Guide bars play a crucial role in warp knitting technology. They guide yarns around the needles and determine the fabric structure being produced.Each guide bar performs specific lateral and swinging movements according to a predetermined pattern. Different guide bar arrangements can create various net structures, mesh sizes, and fabric designs.


    Modern warp knitting machines may use multiple guide bars to achieve complex textile structures. Precision manufacturing ensures smooth operation and accurate yarn placement.

Proper maintenance of guide bars helps improve machine efficiency and reduce yarn breakage. As a result, guide bars are considered one of the most important components in warp knitting production.

Product Images

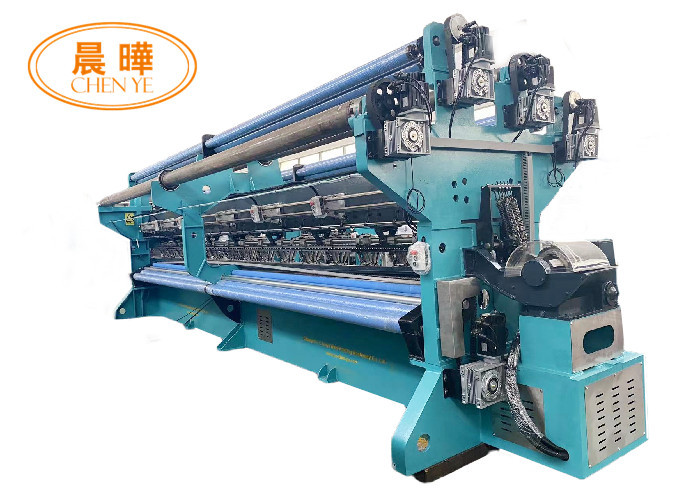

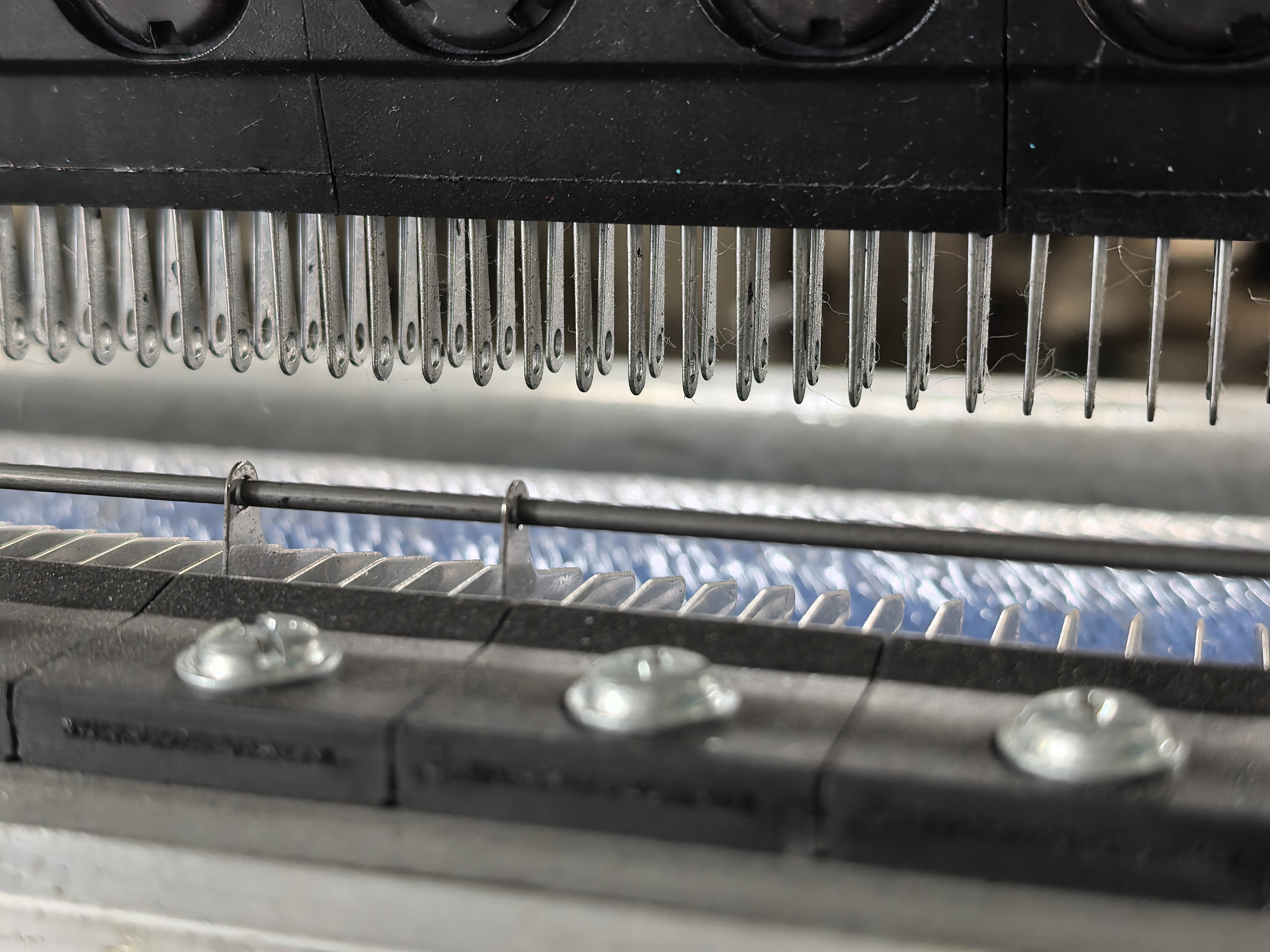

Sunshade net machine industrial view Close-up of net machine components Shade net production process Finished shade net material
Technical Support & Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.
Our Services Include:
  • Information and troubleshooting assistance
  • Software and hardware upgrades
  • Installation and maintenance services
  • Technical advice and guidance
  • Parts and accessories replacements
Our team of qualified technicians provides on-site service for complex repairs and maintenance, ensuring your machine operates at peak efficiency.
Technical support team at work Machine maintenance service
Packing & Shipping
We ensure complete safety and security of all goods during packing and shipping processes.
Secure machine packaging Shipping preparation
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters for machinery, raw materials, and finished products storage.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials with adjustable machine settings.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
