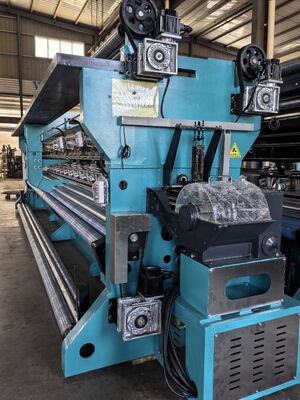

220-Inch Raschel Warp Knitting Machine with Stable Performance for Net Manufacturing
Place of Origin:
China , Jiangsu
Brand Name:
Chenye
Certification:
ISO ,CE, TUV
Model Number:
SRCA
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
40HQ/Set
Delivery Time:
60 days after deposit payment
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
25 sets per month
Inquiry Now
Get A Quote
Specifications
Highlight Features
220-inch Raschel warp knitting machine
,stable performance net manufacturing machine
,shade net making Raschel machine
Product Type:
Shade Net Making Machine
Color:
Customized
Working Width:
135"-260"
Speed:
200-450rpm
Size:
2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Warranty:
1Year(lifelong Technical Support)
Product Description
Advanced Sunshade Net Manufacturing Machine
Product Overview
This advanced manufacturing machine produces high-quality UV protection nets made from HDPE material, designed for agricultural and industrial applications.
Technical Specifications
Number of Bars: 2~8
Working Width: 135", 150", 170", 220", 240", 260"
Take-up Manner: 2 rollers with friction drive, center shaft drive, separately-standing
Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
Needle Type: Block latch needle, individual latch needle, or compound needle
Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Working Width: 135", 150", 170", 220", 240", 260"
Take-up Manner: 2 rollers with friction drive, center shaft drive, separately-standing
Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
Needle Type: Block latch needle, individual latch needle, or compound needle
Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Machine Parameters
| Type | Size (L×W×H) | Weight (Kg) | Power (KW) | Speed (rpm) |
|---|---|---|---|---|
| SRCA-135 | 4300×2200×2700 | 4700 | 3 | 200-530 |
| SRCA-150 | 4900×2200×2700 | 5000 | 3 | 200-530 |
| SRCA-180 | 6100×2200×2700 | 7500 | 5.5 | 200-530 |
| SRCA-220 | 7300×2200×2700 | 9000 | 5.5 | 200-530 |
| SRCA-260 | 8200×2200×2700 | 11000 | 7.5 | 200-480 |
| SRCA-340 | 10300×2200×2700 | 14000 | 11 | 200-450 |
Applications & Purpose
Shade netting provides essential protection in agricultural, horticultural, and construction settings by creating controlled environments that regulate temperature and shield from excessive sunlight.
- Sunlight Protection: Reduces sunlight intensity to prevent overheating of crops, plants, and animals
- Temperature Control: Maintains lower temperatures by filtering sunlight for optimal growth conditions
- Wind and Dust Barrier: Acts as windbreak to reduce wind speed and prevent dust infiltration
Product Images
Technical Support & Services
Our comprehensive technical support ensures optimal performance of your Shading Net Making Machine with the following services:
- Information and troubleshooting assistance
- Software and hardware upgrades
- Installation and maintenance services
- Technical advice and guidance
- Parts and accessories replacements
We provide on-site service for complex repairs and maintenance by highly qualified technicians dedicated to customer satisfaction.
Packing & Shipping
We ensure complete safety and security of all goods during packing and shipping processes.
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG per 24 hours.
How much space needed to set up a shading net production line?
Small-scale production requires 100-200 square meters, while larger operations may need several thousand square meters, including space for machinery, raw materials, and finished products.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types based on material: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern machines are customizable for various sizes, mesh configurations, and materials with adjustable settings to meet specific shading requirements.
What types of shading nets material can be made with these machines?
Primarily HDPE material, with some applications using AL and PET materials for specialized shading nets.
Are there any special skills required to operate the machine?
Basic training is recommended for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
