High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use

1 set
MOQ
Negotiation
Price

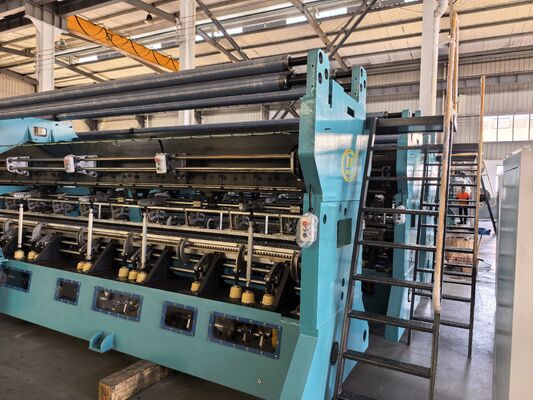

High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use
Features Gallery Product Description Request A Quote
Features
Specifications
Product Type: Shade Net Making Machine
Color: Customized
Working Width: 135"-260"
Speed: 200-450rpm
Size: 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Warranty: 1Year(lifelong Technical Support)
Basic Infomation
Place of Origin: China , Jiangsu
Brand Name: Chenye
Certification: ISO ,CE, TUV
Model Number: SRCA
Payment & Shipping Terms
Packaging Details: 40HQ/Set
Delivery Time: 60 days after deposit payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 25 sets per month
Product Description
Greenhouse Net Production Equipment Agricultural Net Weaving Machine
Product Overview
This advanced agricultural net weaving machine is designed for efficient production of greenhouse shade nets with customizable specifications and robust performance.
Technical Specifications
  • Number of bars: 2~8
  • Working Width: 135", 150", 170", 220", 240", 260"
  • Take-up manner: 2 rollers with friction drive, center shaft drive, separately-standing
  • Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
  • Needle Type: Block latch needle, individual latch needle, or Compound needle
  • Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Machine Parameters
Type Size (L×W×H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300×2200×2700 4700 3 200-530
SRCA-150 4900×2200×2700 5000 3 200-530
SRCA-180 6100×2200×2700 7500 5.5 200-530
SRCA-220 7300×2200×2700 9000 5.5 200-530
SRCA-260 8200×2200×2700 11000 7.5 200-480
SRCA-340 10300×2200×2700 14000 11 200-450
Applications
Shade net machines produce specialized netting used in agriculture, horticulture, and construction to provide protection from harsh weather, regulate temperature, and shield crops from excessive sunlight. Recent advancements focus on automation, durability, and customization.
Primary Purposes
  • Sunlight Protection: Reduces sunlight intensity to prevent overheating and create favorable growth microclimates
  • Temperature Control: Filters sunlight to maintain lower temperatures for plants, animals, and people
  • Wind and Dust Barrier: Acts as windbreak to reduce wind speed and prevent dust in sensitive areas
Product Images
High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use 0 High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use 1 High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use 2
Technical Support & Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.
  • Information and troubleshooting assistance
  • Software and hardware upgrades
  • Installation and maintenance services
  • Technical advice and guidance
  • Parts and accessories replacements
We also provide on-site service for complex repairs and maintenance by our team of highly qualified technicians.
High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use 3 High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use 4 High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use 5
Packing & Shipping
We ensure the safety and secure packaging of all goods during transportation.
High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use 6 High-Speed 200-450rpm Shade Net Making Machine with 135"-260" Working Width and E3-E18 Gauge for Agricultural Use 7
Frequently Asked Questions
What is the output of shading net making machine?
Output depends on machine working width and net technical specifications, typically ranging from 500-1000KG per 24 hours.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters. Space requirements include machine footprint plus storage for raw materials and finished products.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials. Machine settings can be adjusted to meet specific shading requirements.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. Manufacturers provide training sessions and manuals to guide operators through setup, operation, and maintenance procedures.
