Advanced Safety Net Machine with Block Latch Needle System, 300-400 kg/day Production Capacity, and HDPE + UV Stabilized Material

1SET
MOQ
USD25000-40000
Price
Advanced Safety Net Machine with Block Latch Needle System, 300-400 kg/day Production Capacity, and HDPE + UV Stabilized Material
Features Gallery Product Description Request A Quote
Features
Specifications
Power(W): 9kw
Condition: New
Production Capacity: 300-400 Kg/day
Weight: Different Weight
Warranty: 1 Year
Color: Blue
Knitting Style: Warp
Material: HDPE +UV Stabilized,HDPE With U.V. Treated,PP
Highlight:

Block Latch Needle System Safety Net Machine

,

300-400 kg/day Production Capacity Raschel Warp Knitting Machine

,

HDPE + UV Stabilized Material Net Knitting Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: chenye
Certification: SGS
Model Number: SROA
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 45Working Days
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 10SETS/MONTH
Product Description

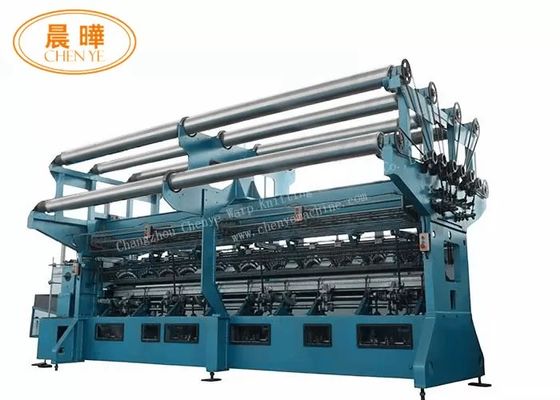

Advanced Safety Net Production Machine
HDPE Building Construction Raschel Machine featuring Block Latch Needle or Single Latch Needle System
Our Services
All products supplied by our company are covered by a one-year warranty with lifetime technical support to ensure long-term stable operation.
  • Free technical training for customer staff at our factory
  • Regular follow-ups and inspections by dedicated personnel
  • Maintenance reminders and ongoing support
Specifications
Technical Parameters
Needle Type Block latch needle or individual latch needle
Gauge E2, E6, E7, E8, E9, E12
Bar Number 2~6
Nominal Width 135", 150", 170", 220", 240", 260"
Take-up Manner 2 rollers with friction drive, center shaft drive; 2 rollers with friction drive, separately-standing, center shaft drive, separately-standing
Machine Models & Performance
Main Type Machine Size Speed (rpm) Main Motor Power Inching Motor Power
SRCA-135 4300*1700*2300 200-530 3kw 0.37kw
SRCA-150 4900*1700*2300 200-530 3kw 0.37kw
SRCA-170 6100*1700*2400 200-530 5.5kw 0.75kw
SRCA-220 7300*1700*2400 200-500 5.5kw 1.5kw
SRCA-240 8200*1700*2400 200-480 7.5kw 1.5kw
SRCA-260 10300*1700*2400 200-450 11kw 1.5kw
Usage & Features
Usage: This machine is used to produce safety nets, shading nets, purse nets, and breeding nets.
Features: Equipped with an oil-bath eccentric gear system and a three-roller forward yarn break detection system.
Packaging & Shipping
Packaging Details: Standard wooden box packaging (Size: L*W*H). For European exports, wooden boxes are fumigated. Alternative packaging options available for tight containers or special customer requests.
Port: Shanghai
Advanced Safety Net Machine with Block Latch Needle System, 300-400 kg/day Production Capacity, and HDPE + UV Stabilized Material 0
Production Process
Advanced Safety Net Machine with Block Latch Needle System, 300-400 kg/day Production Capacity, and HDPE + UV Stabilized Material 1
Applications
Safety Nets: Engineering and construction nets, protective nets, fire-resistant nets, and more
Advanced Safety Net Machine with Block Latch Needle System, 300-400 kg/day Production Capacity, and HDPE + UV Stabilized Material 2 Advanced Safety Net Machine with Block Latch Needle System, 300-400 kg/day Production Capacity, and HDPE + UV Stabilized Material 3
Frequently Asked Questions
Q: Is the price changeable?
A: We offer reasonable pricing for all clients, with adjustments based on purchase quantity.
Q: How about the quality?
A: Professional assembly line work and strict quality testing systems ensure high-quality standards.
Q: How about the after-sale service?
A: We provide comprehensive after-sale overseas service with engineers available for international machinery support.
