Home /Products/Agricultural Netting Machine/7500W Warp Knitting Hay Net Making Machine with 260inch Width

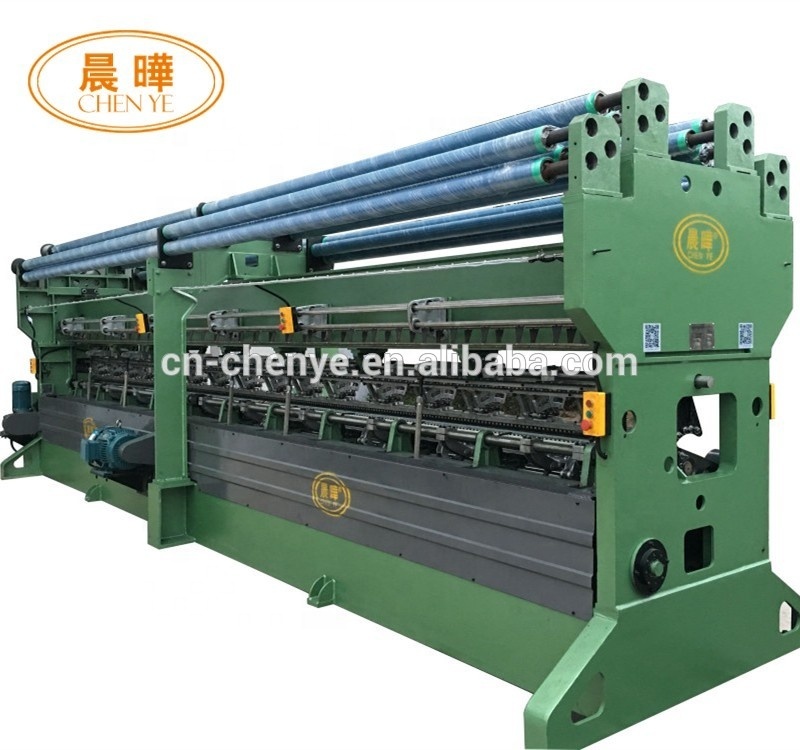

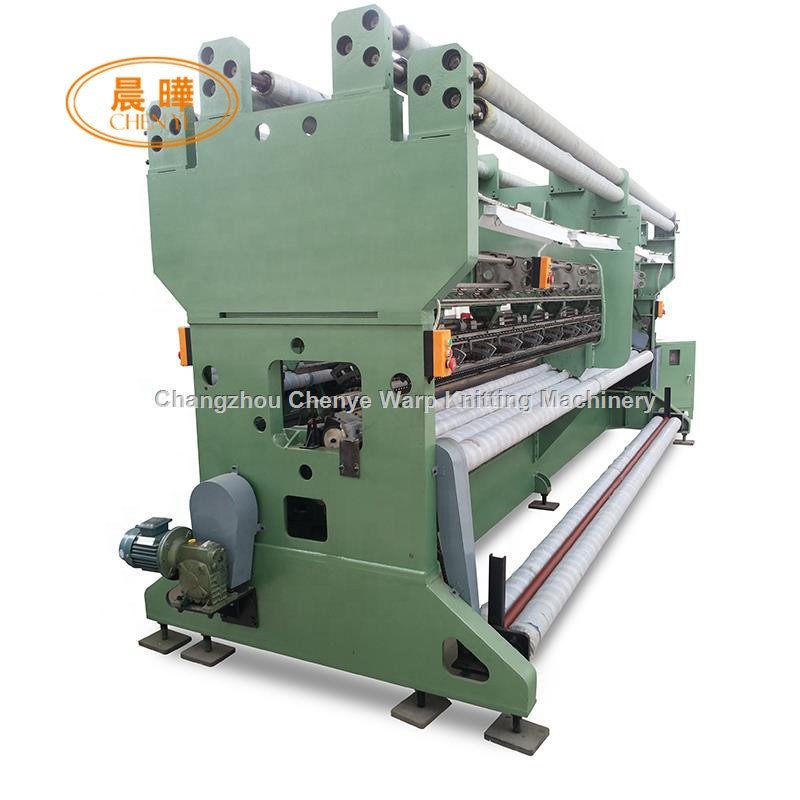

7500W Warp Knitting Hay Net Making Machine with 260inch Width

1
MOQ
$25,000
Price
7500W Warp Knitting Hay Net Making Machine with 260inch Width
Features Gallery Product Description Request A Quote
Features
Specifications
Production Capacity: 100
Power: 7500W
Knitting Style: Warp
Knitting Method: Single Phase
Computerized: Yes
Dimensions: 6100*2300*2800mm
Gauge: 3-5-7 Multi-gauge, 8-10-12 Multi-gauge
Knitting Width: 260inch
Working Width: 135-260
Speed: 200-480rpm
Needle Type: Block Latch Needle Or Individual Latch Needle
Number Of Bars: 2-8
Take-up Manner: Center Shaft Drive, Separately-standing
Weight: 12000 KG
Type: Raschel
Highlight:

7500W warp knitting hay net machine

,

260inch wide agricultural netting machine

,

hay net making machine with warranty
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: chenye
Payment & Shipping Terms
Product Description
Hay Net Making Machine Packing Net for Agricultural Weaving Loom
Product Specifications
Attribute Value
Product Type Net
Production Capacity 100
Power (W) 7500
Knitting Style Warp
Knitting Method Single Phase
Computerized Yes
Dimension (L×W×H) 6100×2300×2800 mm
Warranty 2 years
Key Selling Points High Productivity
Gauge 3-5-7 multi-gauge, 8-10-12 multi-gauge
Knitting Width 260 inch
Core Components Pressure vessel, motor, Bearing, Gear, PLC, Pump, Engine, Gearbox
Weight 12000 KG
7500W Warp Knitting Hay Net Making Machine with 260inch Width 0
Technical Specifications
Main Type Machine Size (mm) Weight (kg) Main Motor Power Inching Motor Power Speed (rpm)
SRCA-135 4300×1700×2300 4500 3kw 0.37kw 200-530
SRCA-150 4900×1700×2300 5000 4kw 0.37kw 200-530
SRCA-180 6100×1700×2400 7500 5.5kw 0.75kw 200-530
SRCA-220 7300×1700×2400 9000 5.5kw 1.5kw 200-500
SRCA-260 8200×1700×2400 11000 7.5kw 1.5kw 200-480
SRCA-340 10300×1700×2400 14000 11kw 1.5kw 200-450
Applications
This machine is suitable for manufacturing various plastic nets including:
  • Bale net wrap
  • Olive net
  • Open-width knotless fishing net

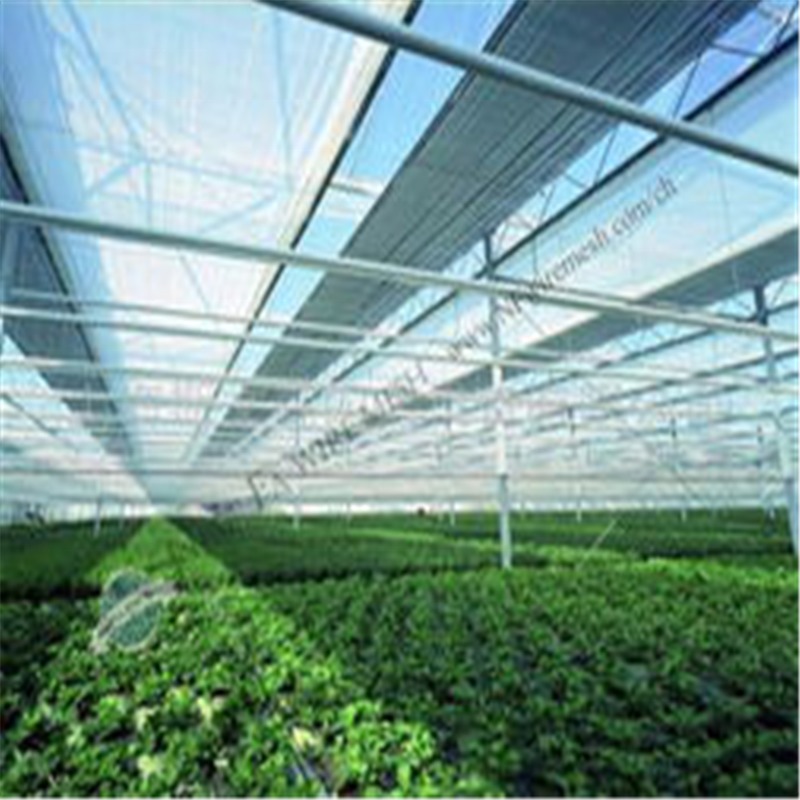

  • Shade net
  • Building-safety net
  • Wind-proof net
  • Insect-proof net
  • Bird-proof net
Suitable Materials
HDPE, Polypropylene, Polyester
Machine Advantages
  • Simple structure, easy operation
  • Automatic stop system
  • Cam drive for stable performance
  • Main motor with conversion control and stepless speed regulating
  • Standard fittings included
  • Oiled eccentric gearing and 3-rollers positive yarn let-off system
7500W Warp Knitting Hay Net Making Machine with 260inch Width 1 7500W Warp Knitting Hay Net Making Machine with 260inch Width 2
Packaging & Shipping
Standard packaging includes wooden box (Size: L×W×H). For European countries, the wooden box will be fumigated. If container space is limited, we can use PE film for packing or accommodate special customer requests.
Our Services
  • 24-hour response to customer inquiries
  • Professional support in fluent English
  • Customized designs available (OEM&ODM welcome)
  • Direct manufacturer pricing for best quality
  • Professional engineering support and solutions
  • After-sales service including video technical support, online support, free spare parts, field installation, and maintenance
Company Information
We are a specialized manufacturer of warp knitting machinery with strong R&D capabilities. Our 14,000 sq.m facility employs over 60 staff including experienced engineers. We maintain technical cooperation with Jiangnan University and are members of the Chinese Fishing Boat & Gear Association.
Our products have been successfully exported to India, Vietnam, Indonesia, Bangladesh, Egypt and other countries, earning high customer satisfaction. We continue to innovate and develop new products to meet diverse market needs.
7500W Warp Knitting Hay Net Making Machine with 260inch Width 3 7500W Warp Knitting Hay Net Making Machine with 260inch Width 4 7500W Warp Knitting Hay Net Making Machine with 260inch Width 5 7500W Warp Knitting Hay Net Making Machine with 260inch Width 6
Frequently Asked Questions
Q: Are you a manufacturer or trade company?
A: We are a professional manufacturer with our own international trade department, allowing us to better understand customer needs and offer competitive pricing.
Q: Can we visit your factory?
A: We welcome all potential partners to visit our factory for an on-site assessment of our production capabilities.
Q: Is the price negotiable?
A: We offer reasonable pricing for all clients, with adjustments possible based on order quantity.
Q: How do you ensure quality?
A: Our professional assembly line and strict quality control system guarantee high product quality.
Q: What after-sales service do you provide?
A: We offer comprehensive after-sales support including overseas service by our engineers when needed.
7500W Warp Knitting Hay Net Making Machine with 260inch Width 7 7500W Warp Knitting Hay Net Making Machine with 260inch Width 8 7500W Warp Knitting Hay Net Making Machine with 260inch Width 9 7500W Warp Knitting Hay Net Making Machine with 260inch Width 10
