Home /Products/Agricultural Netting Machine/DRCA Model Bale Net Making Machine for Agricultural Use

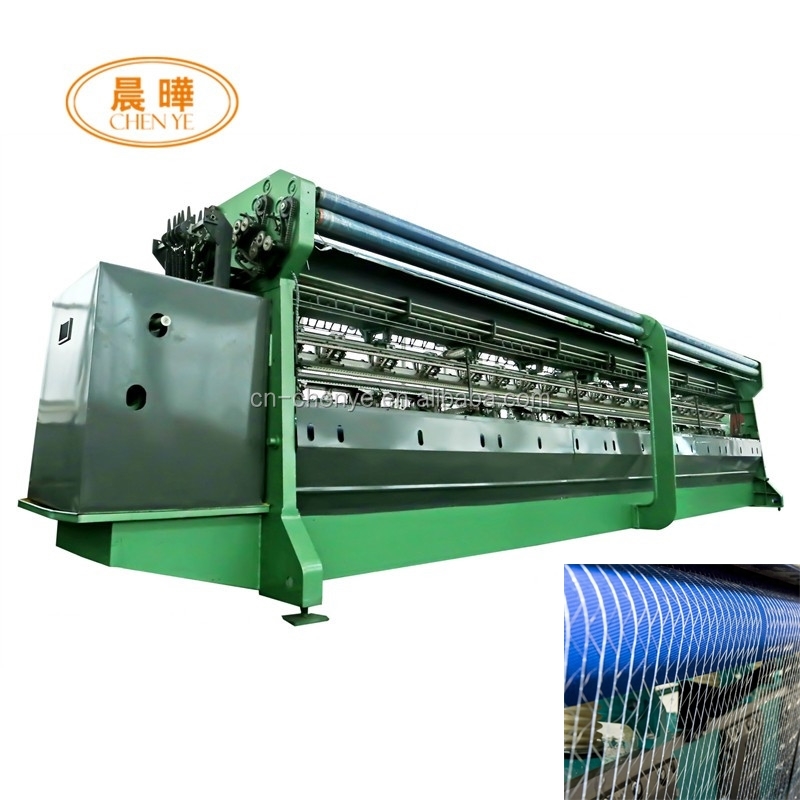

DRCA Model Bale Net Making Machine for Agricultural Use

1
MOQ
US$35,000-48,000
Price
DRCA Model Bale Net Making Machine for Agricultural Use
Features Gallery Product Description Request A Quote
Features
Specifications
Model: DRCA
Working Width: 110'',135'',150'',180'',220'',260'',340''
Knot Type: E6,E7,E8,E9,E12,E14
Bars: 2~6 Bars
Weight: 7500 KG
Automatic Grade: Manual
Production Capacity: 80%
Voltage: According To Buyer Country
Power: According To Buyer Country
Dimension: Different Size
Main Motor: 3KW, 5.5KW, 7.5KW, 11KW
Inching Motor: 0.37KW, 0.75KW, 1.5KW
Speed: 200-530 Rpm
Machine Type: DRCA-135, DRCA-150, DRCA-180, DRCA-220, DRCA-260, DRCA-340
Machine Weight: 4500kg, 5000kg, 7500kg, 9000kg, 11000kg, 14000kg
Highlight:

agricultural bale net making machine

,

DRCA netting machine for farming

,

bale net machine with warranty
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Chenye
Payment & Shipping Terms
Product Description
Manufacturer's Direct Sales of Bale Net Making Machine
Product Specifications
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Core Components Motor
Automatic Grade Manual
Production Capacity 80%
Voltage According to buyer country
Power (W) According to buyer country
Dimension (L×W×H) Different size
Warranty ONE YEAR
Product Name Raschel Warp Knitting Machinery
Model DRCA
Working Width 110'',135'',150'',180'',220'',260'',340''
Knot Type E6,E7,E8,E9,E12,E14
Bars 2~6 bars
Our Service Advantages
Technology Innovation
We possess excellent processing equipment and strong technology innovation capabilities.
Reasonable Pricing
We offer competitive market prices for our knitting machines while maintaining high quality standards.
Extensive Experience
With 26 years of experience in manufacturing warp knitting machines, we provide complete solutions for customers.
Quality Service
We dispatch engineers to your factory for machine commissioning and operator training.
DRCA Model Bale Net Making Machine for Agricultural Use 0
DRCA Model Bale Net Making Machine for Agricultural Use 1
Product Application

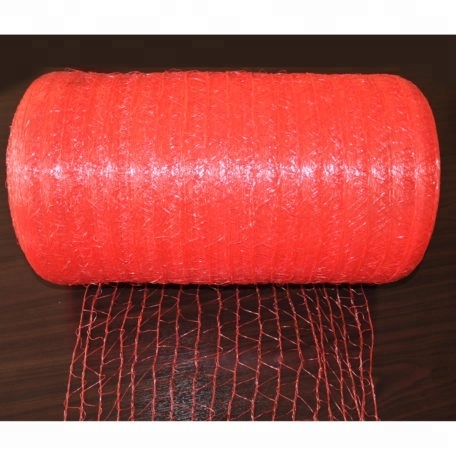

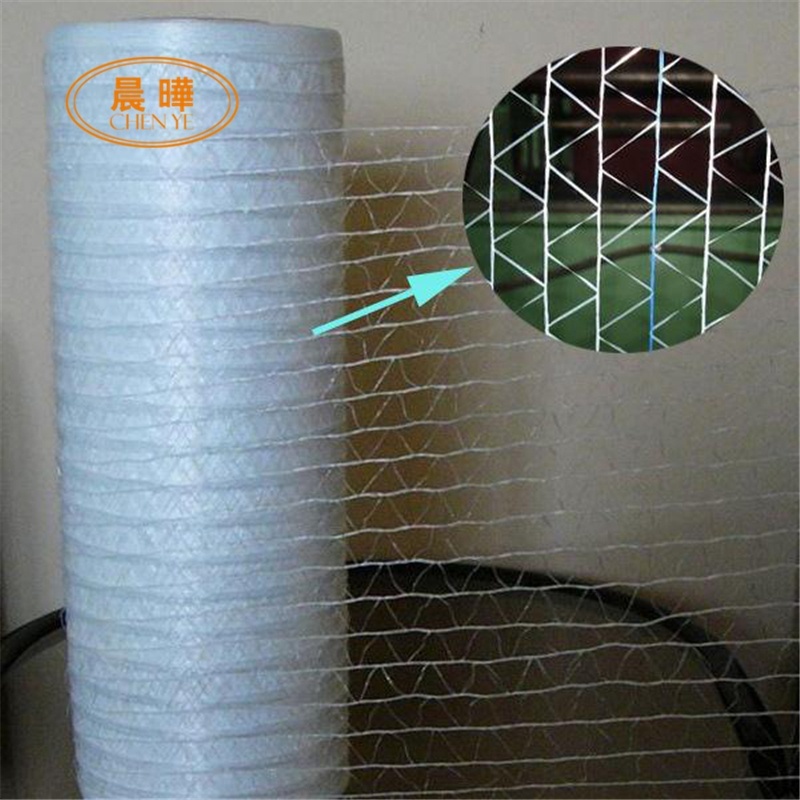

  • Produces knotless fishing net, bale net, protecting net, purse net, garment net, etc.
  • Features open cam gearing and 3-rollers positive yarn let-off system
  • Available gauges: E6, E7, E8, E9, E12, E14
  • Number of bars: 2~6
  • Multiple take-up manners available
Technical Specifications
Machine Type Machine Size Machine Weight (kg) Main Motor (KW) Inching Motor (KW) Speed (rpm)
DRCA-135 4300x1700x2300 4500 3 0.37 200-530
DRCA-150 4900x1700x2300 5000 3 0.37 200-530
DRCA-180 6100x1700x2400 7500 5.5 0.75 200-530
DRCA-220 7300x1700x2400 9000 5.5 1.5 200-500
DRCA-260 8200x1700x2400 11000 7.5 1.5 200-480
DRCA-340 10300x1700x2400 14000 11 1.5 200-450
Product Gallery
DRCA Model Bale Net Making Machine for Agricultural Use 2
DRCA Model Bale Net Making Machine for Agricultural Use 3
DRCA Model Bale Net Making Machine for Agricultural Use 4
DRCA Model Bale Net Making Machine for Agricultural Use 5
Quality Control
DRCA Model Bale Net Making Machine for Agricultural Use 6
DRCA Model Bale Net Making Machine for Agricultural Use 7
Packaging & Delivery
DRCA Model Bale Net Making Machine for Agricultural Use 8
Packaging Details: We use PE film for packing or according to customer's special request. Spare parts are packed in wooden boxes. All machines are secured with steel straps.
