Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing

$25,000/sets >=1 sets
Price
Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Open Cam Gearing, The Electronic Beam Control
Product Type: Net
Production Capacity: 90%
Place Of Origin: Jiangsu, China
Brand Name: Chenye
Power(w): 3000 W
Knitting Style: Warp
Knitting Method: Single Phase
Computerized: Yes
Dimension(l*w*h): Different
Warranty: 2 Years
Key Selling Points: Automatic
Gauge: 3-5-7 Multi-gauge
Knitting Width: 260inch
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Motor, Other
Application: Knotless Fishing Net,chemical Fiber Garment Net And Mosquito Net
Gauge: E6/E9/E12/E14/E16/E18/E20/E22
Working Width: 80-260"
Speed: 200-530rpm
Number Of Bars: 2-6
Guage: Diffeent
Color: Blue
Model: Control System
Needles: Latch Needle
Applicable Industries: Food & Beverage Factory, Farms, Restaurant, Home Use, Printing Shops, Food & Beverage Shops
Condition: New
Warranty Of Core Components: 2 Years
Marketing Type: New Product 2021
Type: Raschel
Weight: 12000 KG
Basic Infomation
Payment & Shipping Terms
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Product Description
Product Description

 Application:



It's suitable for manufacturing mosquito net, chemical fiber garment net, technical net, knotless fishing net, quadrangle net and medical net.



Suitable Material :

HDPE ,polypropylene ,polyester

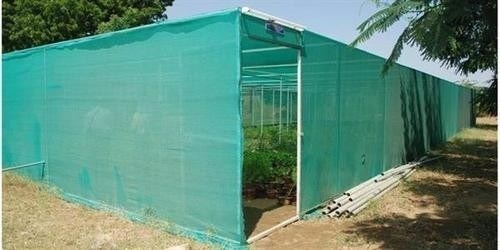

HDPE green shade net suppliers making machine for greenhouse



FEATURES: the machine is equipped with open cam gearing, the electronic beam control, the electronic take-up control.



Machine Specification :

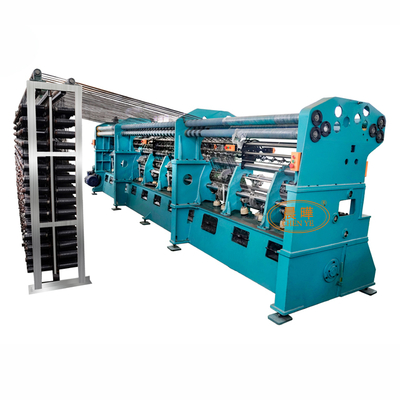

1.Model :single needle bar warp knitting machine

2. Needle type:Latch needle

3. Gauge:E6/E9/E12/E14/E14/E16/E18/E20/E22 (needles/inch)

4. Working width: 80-260"

5. Number of guide bars: 2-6bars

6.Automatic: full-automatic

7. Take-up manner: 2 rollers with friction drive, center shaft drive, 2rollers with friction drive, separately-standing, center shaft drive, separately-standing

8. Max. speed of main shaft: working speed 200-530rpm

9. Drive motor: main drive motor is 3-5.5kw, slow speed motor is 0.37-0.75kw

10.Production Capacity: about 500kg-1000kg/24hrs

11.Weight :about 4500-7500KGS/set

12.Packing:The machine is packed by port container, spare parts and control box are packed in cartons



Machine Advantage :

1.Simple structure, Operate Conveniently.

2.With automatic stop system

3.Cam drive ,stable performance

4.The main motor adopts conversion control , stepless Speed Regulating

5. Standard Fittings .



Main type
Machine size
Weight(kg)
Main motor power
Inching motor power
Speed(rpm)
SRCE-135
4300*2200*2700
4500
3kw
0.37kw
200-530
SRCE-150
4900*2200*2700
5000
3kw
0.37kw
200-530
SRCE-180
6100*2300*2800
7500
5.5kw
0.75kw
200-530



Packaging & Shipping



Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 0Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 1



PRODUCTION PROCESS

Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 2

Our Services

Reply customer inquiry in 24 working hours.
Experienced answer all your question in profession and fluent English.
Customized design is available OEM&ODM are welcome.
We are manufacture, we can provide best quality with best price to you .
Prominent and unique solution can be provided to our customer by our well-trained and professional engineers and staffs .



Company Information



We are a manufacturer specialised in warp knitting machinery with strong R&D background . We have our own sales and service team to expand our overseas trade . Our focus is also on technical and product development

Our facility covers 14000 sq.m with more than 60 employees . We have our own engineers with strong knowledge of knitting machinery . We are able to introduce advanced technology into warp knitting industries by having technical co-operation with Jiangnan University . We are member of Chinese Fishing Boat & Gear Association who is truly in technology research and development on manufacturers to ensure product quality , understanding customer requireements and able to provide solutions on their problems . The business philosophy is to optimize product performance and quality aiming at developing manufacturers who are able to build new type of warp knitting machine .

Our company has developed a Raschel machine with excellent performance , economical and practical characteristics . Our products have been sold to India , Vietnam , Indonesia , Bangladesh , Egypt and etc. achieving high customer satisfaction . We want to continue innovating and develop new products to satisfy different user needs . We want to enlarge our market share with advanced technology , reliable quality and good customer service .

Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 3Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 4Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 5Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 6Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 7Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 8

FAQ

 1,Q:Are you a manufacturer or trade company?
A: We are a professional manufacturer holding our own international trade. For that we can better understand customer's needs and offer a reasonable price.

2,Q : Are you available for visiting the factory?
A : for long term business , we are really welcome all our friends to come here and visit our factory in order to On-the-spot investigation of our production capacity.

3,Q : Is the price changeable?
A : We offer reasonable price for every clients, and the price is changeable according to the purchase amounting.

4,Q : How about the quality?
A : Professional assembly line work and strict quality test system can ensure your high quality requirement.

5,Q : How about the after-sale service?
A : We offer after-sale overseas service. Engineers available to service machinery overseas.



Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 9Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 10Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 11Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 12Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 13Highly Productive HDPE Green Shade Net Suppliers Machine with Different Features and Open Cam Gearing 14
