Home /Products/Shade Net Making Machine/High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing

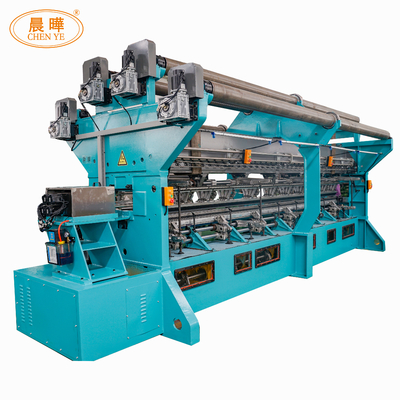

High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing

$27,489/sets >=1 sets
Price
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Fast And High Production
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Core Components: PLC, Gearbox, Pump
Automatic Grade: Manual
Production Capacity: 80%
Place Of Origin: Jiangsu, China
Brand Name: Chenye
Voltage: According To Buyer Country
Power(W): According To Buyer Country
Dimension(l*w*h): Different Size
Warranty: ONE YEAR
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Name: Raschel Warp Knitting Machinery
Model: SRCA
Working Width: 110'',135'',150'',180'',220'',260'',340''
Knot Type: E6,E7,E8,E9,E12,E14
Bars: 2~6 Bars
Applicable Industries: Hotels, Restaurant, Retail, Printing Shops, Food & Beverage Shops
Showroom Location: Egypt, Brazil, Russia, South Korea, Chile, South Africa, Kazakhstan, Japan
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Condition: New
Application: Producing Net
Weight: 12000 KG
Port: Shanghai, Ningbo
Basic Infomation
Payment & Shipping Terms
Packaging Details: 40HQ Container.
Supply Ability: 15 Set/Sets per Month
Product Description
Product Description

Product Application

*This machine is used to produce knotless fishing net,shading net,protecting net,purse net,garment net etc...

*This type machine is oppen cam gearing and 3-rollers positive yarn let-off system

*Gauge:E6,E7,E8,E9,E12,E14

*Number of bars:2~6

*Take-up Manner: 2rollers with friction drive; Center shaft drive; 2 rollers with friction drive;Separately-standing;Center shaft drive;Separately-standing.

Machine Type
Machine Size
Machine Weight(kg)
Main Motor(KW)
Inching Motor(KW)
Speed(rpm)
SRCA-135
4300x1700x2300
4500
3
0.37
200-530
SRCA-150
4900x1700x2300
5000
3
0.37
200-530
SRCA-180
6100x1700x2400
7500
5.5
0.75
200-530
SRCA-220
7300x1700x2400
9000
5.5
1.5
200-500
SRCA-260
8200x1700x2400
11000
7.5
1.5
200-480
SRCA-340
10300x1700x2400
14000
11
1.5
200-450
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 0
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 1
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 2
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 3
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 4

What products we can produce by this machine?

High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 5
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 6
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 7
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 8
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 9
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 10
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 11
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 12
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 13
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 14
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 15
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 16
Company introduction
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 17
Producing
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 18
Our Service

We will dispatch enginner to your factory to commissioning the machine and teach your workers how to opperate the machine.


High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 19

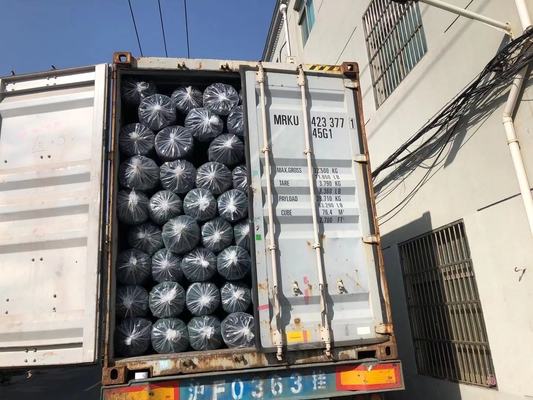

Packing & Delivery
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 20
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 21
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 22
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 23
High Production Monofilament Shade Net Warp Knitting Machine for 12000 KG HDPE Shading Net Manufacturing 24
Packaging
Size
40HQ
Weight
1.2 T



Packaging Details
We will use pe film for packing or pack it according to customers special request.
And spare parts in wooden box.
All machine fix with steel string.
