Features

Specifications

Features: Fast And High Production

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Core Components: Motor

Automatic Grade: Manual

Production Capacity: 80%

Place Of Origin: Jiangsu, China

Brand Name: Chenye

Voltage: According To Buyer Country

Power(W): According To Buyer Country

Dimension(l*w*h): Different Size

Warranty: ONE YEAR

Product Name: Raschel Warp Knitting Machinery

Model: RS

Working Width: 110'',135'',150'',180'',220'',260'',340''

Knot Type: E6,E7,E8,E9,E12,E14

Bars: 2~6 Bars

After Warranty Service: Online Support

Local Service Location: India

After-sales Service Provided: Free Spare Parts

Applicable Industries: Farms, Restaurant, Food Shop, Printing Shops

Showroom Location: India, Spain

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Condition: New

Application: Producing Net

Weight: 7000 KG

Basic Infomation

Payment & Shipping Terms

Gallery

After Service Online support Shading Net Machine Plastic Net Making Machine with 7000 KG Capacity

Product Description

Our Service

Our service 1.Technology innovation We have excellent processing equipment and strong technology innovation and invention . 2.Reasonable price We gain good market for knitting machine based on good service,reasonable price , high quality . We provide you high quality net making machine to help you to get a great start of your net business . 3.More experience We have 26 years experience in manufacturing warp knitting machine and design whole line solution for customers . 4.Quality service We will dispatch engineer to your factory to commissioning the machine and teach your workers how to operate the machine during COVID-19

Product Description

Product Application

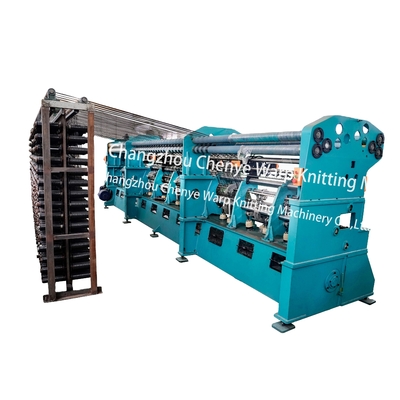

RS High Speed Single Needle Bar Raschel Machine

APPLICATION:This machine is used to produce knotless fishing net,protecting net ,purse net,garment net and shading net.
FEATURES:The machine is equipped with open cam gearing and 3-rollers positive yarn left-off system.

Usage:This machine is used to produce knotless fishing net,protecting net ,purse net,garment net and shading net.
Features:The machine is equipped with open cam gearing and 3-rollers positive yarn left-off system.

Needle Type:Compound needle,Latch Needle

Gauge:E1,E2,E3,E6, E9, E12, E18,E24

Bar Number:2~4

Nominal Width:135" 150" 180" 220" 260"

Machine Type	Machine Size	Machine Weight(kg)	Main Motor(KW)	Inching Motor(KW)	Speed(rpm)
RS-130	4300x1700x2300	4500	4	0.37	400-700
RS-150	5300x1700x2300	5000	5.5	0.37	400-700
RS-180	6100x1700x2400	7500	5.5	0.75	400-650
RS-220	7100x1700x2400	9000	5.5	1.5	400-650
RS-240	7600x1700x2400	11000	7.5	1.5	400-650
RS-260	8100x1700x2400	14000	11	1.5	400-650

Quality Control

Company Profile

company profile

Chenye is professional Raschel Knitting Machine manufacturer which has plenty of experience in this field.Due to the good quality of products,the service ,Chenye is leading company in China Mainland.The products have been sold over 20 countries. We are member of Chinese Fishing Boat&Gear Association which is the top technology of fishing machine in China.We want to continue innovating and develop new products to satisfy different customers' requirement.Lont-tern business is always Chenye's bussiness concept.It is Chenye's honor to keep offering the quality product and service for all customers.

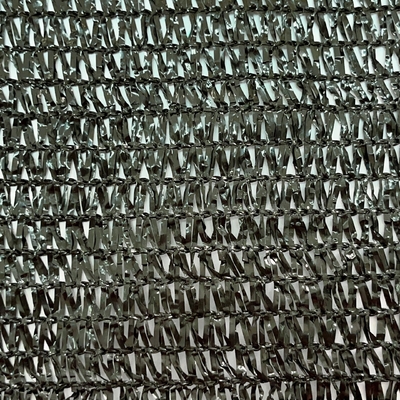

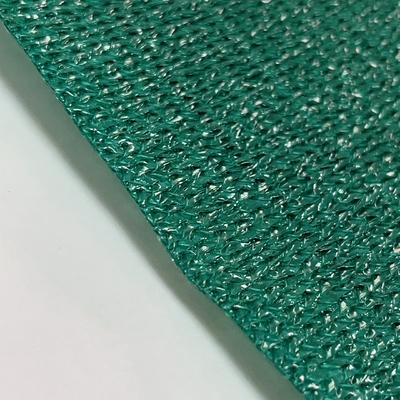

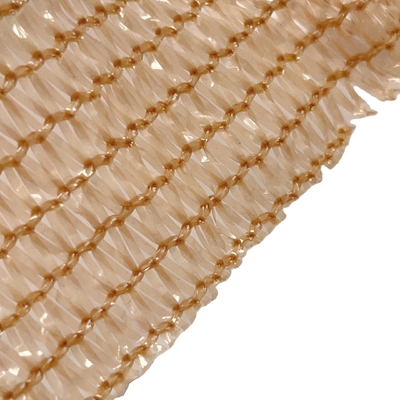

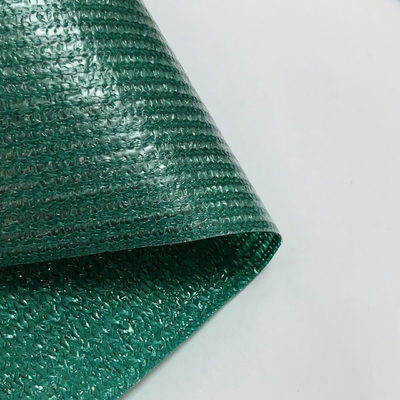

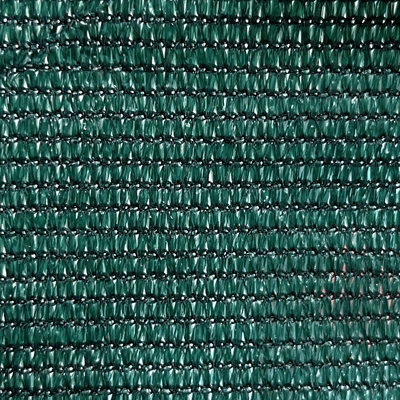

Net Samples
