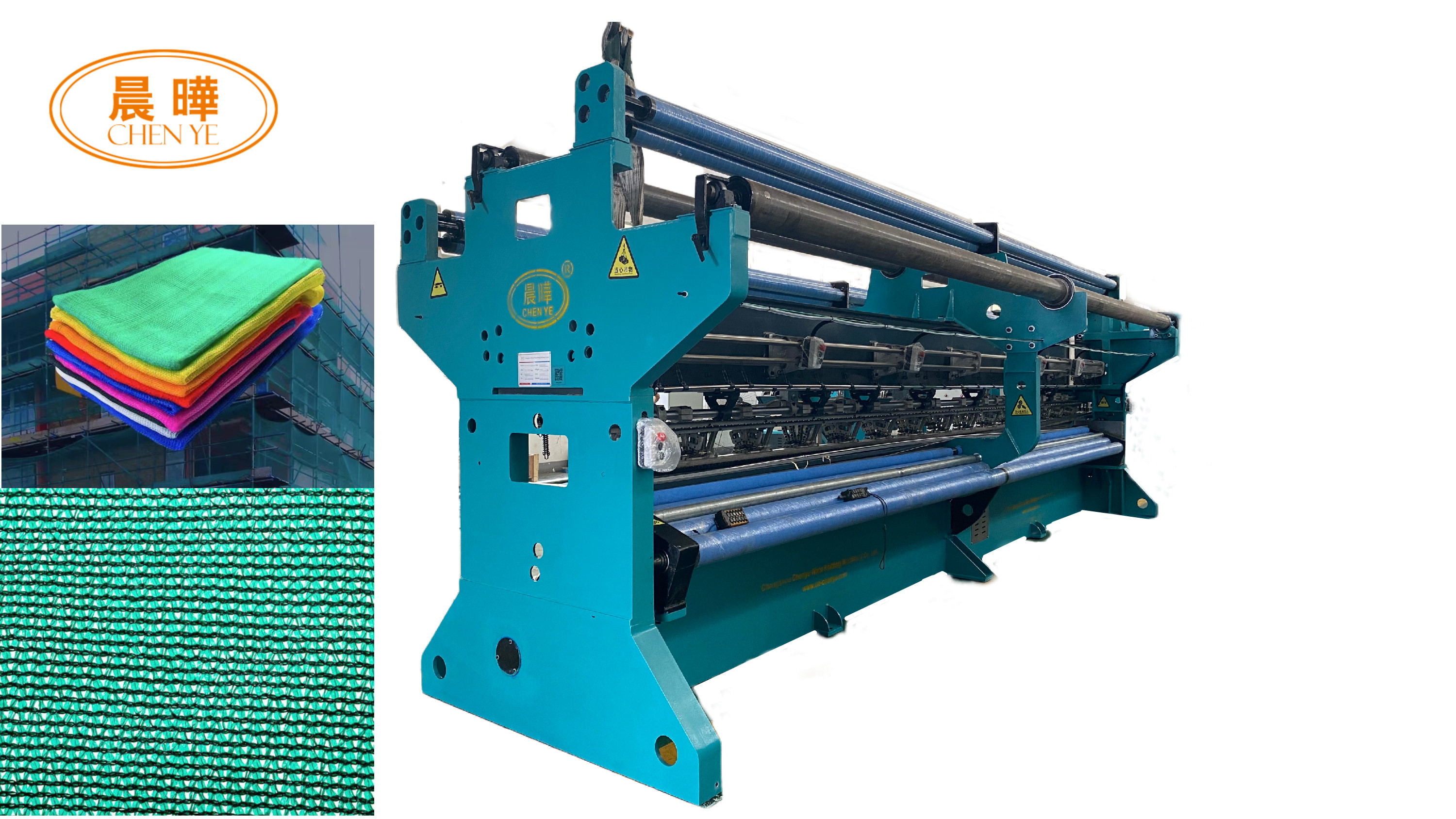

The Single Needle Bar Raschel Machine SRC is designed for an array of applications, such as the production of knotless fishing nets, protecting nets, purse nets, garment nets and shading nets.
This machine has been equipped with open cam gearing and a 3-roller positive yarn let-off system that ensures synchronization of warp yarn tension for each picking cycle. Additionally, it is equipped with an automatic control for electronic yarn scrambler, and a standby machine can be adopted to reduce downtime.
Finally, it has an air-blow system that contracts the take up roller-located raising for easy cleaning.
The Raschel Knitting Machine SRC features great durability and long service life, ensuring stable operations. With a wide range of fabrics available, the machine offers an adjustable weight from 20 grams to 350 grams, and the longest possible length reach up to 11 meters. While multiple combs from 1-8 enable easy operation and maintenance, the EBA electronic warp let-off system further offers a smooth transition from mechanical to automatic and ensures precise control on the warp let-off amount. Simpler adjustments can also be done with the 400 rpm spindle speed measurement and decibel of 80db.
This product is characterized by latch needle, which has the main technical specifications as following:
Gauge: E2,E3,E6,E9,E12,E14
Number of bars :2~6
Working Width:130"180",220",260",340",380",435"
Take-up Manner: 2 rollers with friction drive, center shaft drive, 2 rollers with friction drive, separately-standing, center shaft drive, separately-standing
The Raschel knitting machine SRC application is for the production of various types of nets.
These nets are used for agricultural, construction and sports purposes, such as knotless fishing nets, protecting nets, purse nets, garment nets, and shading nets. In addition, the same technology can be used to produce breeding nets, football gate nets, and packing nets (for potatoes, onions, and fruits).
We provide professional technical support and service for Net Making Machine. Our services include:
We strive to provide the best technical support and service for our customers. For any questions or assistance, please contact us at [insert contact info].
Packaging and Shipping for Net Making Machine:
Usually 40HQ container is used for shipment, and the engineer plans the
space inside the container reasonably.
