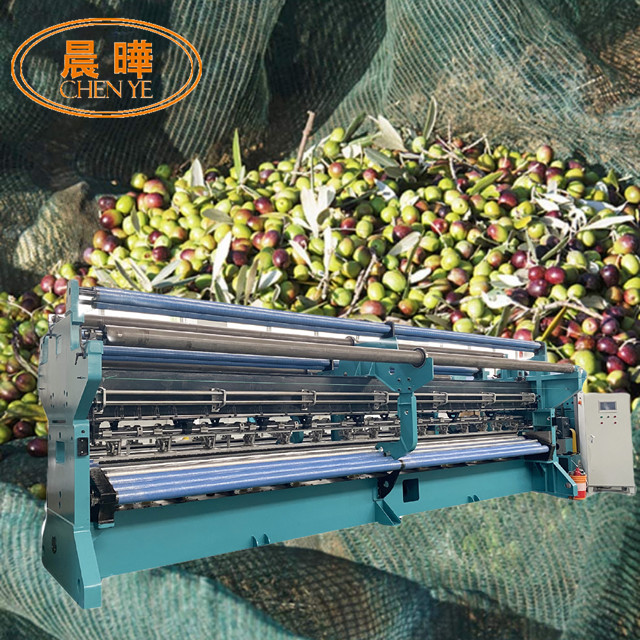

Raschel Knitting Agriculture Machine to Make Olive Net Machine
PRODUCT DESCRIPTION
| Type | Size(L×W×H) | Weight(Kg) | Power(KW) | Speed(rpm) | |
| Main motor | Inching motor | ||||
| SRCP-135 | 4300×2200×2700 | 4700 | 3 | 0.37 | 200-560 |
| SRCP-150 | 4900×2200×2700 | 5000 | 3 | 0.37 | 200-560 |
| SRCP-180 | 6100×2200×2700 | 7500 | 5.5 | 0.75 | 200-560 |
| SRCP-220 | 7300×2200×2700 | 9000 | 5.5 | 1.5 | 200-500 |
| SRCP-240 | 8200×2200×2700 | 10500 | 5.5 | 1.5 | 200-500 |
| SRCP-260 | 10300×2200×2700 | 12000 | 7.5 | 1.5 | 200-400 |
Application:This machine is used to produce Agriculture sun shine shade net, sports net ,purse net and deep sea aquaculture net and so on.
Feature:The machine is equipped with oiled eccentric gearing and the negative yarn let-off system.
Needle Type:Block latch needle ,individual latch needle or Compound needle
Gauge : E3,E6,E7,E8,E9,E12,E14,E16,E18
Number of bar : 2~8
Working Width : 135", 150", 170", 220", 240". 260"
Take-up manner: 2 rollers with friction drive, center shaft drive, 2 rollers with friction drive, separately-standing, center shaft drive, separately-standing
Relevant corollary equipment: Warping Machine
