50*80cm 25kg 30kg Customized Potato Onion Fruit vegetables Packages Sack PE Raschel Mesh Bag

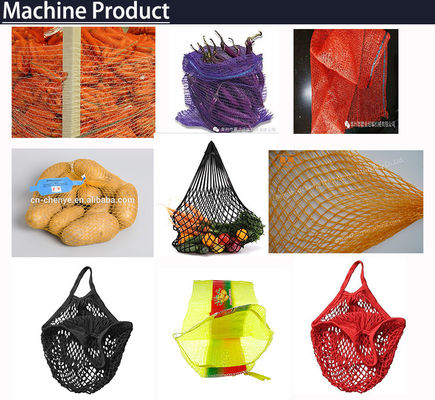

WHAT KIND OF NETS CAN BE MADE

Net bag :The net bags are divided into small mesh bags and large mesh bags.

Small mesh bags refer to the mesh bags used to pack a small number of items, such as "grapefruit, toys, cosmetics".

Large mesh bags refer to large mesh bags such as "round screen window mesh bags, flat wire mesh bags".

DRCA Double Needle Bar Raschel Machine
APPLICATION:This machine is used for shadeing net ,
                          vegetable bage,forage grass net.
FEATURES:The machine is equipped with open cam gearing and
                     3-rollers positive yarn let-off system

SPECIFICATION

Usage:The machine can produce mosquito net,plaid net,
            purse net and chemical fiber garment net.

Features: The machine is equipped with open cam gearing,
                 the negative yarn let-off system.

Needle Type

Latch Needle

Gauge

E2, E3, E6,

Bar Number

2~6

Nominal Width

170" 260" 330"

Take-up Manner

2 rollers with friction drive,center shaft drive;
2 rollers with friction drive,separately-standing,
center shaft drive, separately-standing

Machine Type

Machine Size(L*W*H)(mm)

Machine Weight(Kg)

Motor Power(Kw)

Speed(row/minute)

Main Motor

Inching Motor

DRCA-170

6000*6600*2500

~9000

5.5

0.75

600

DRCA-260

8200*6600*2500

~12000

5.5

1.5

600

DRCA-330

10000*6600*2500

~15000

7.5

1.5

600

PRODUCTION PROCESS

Packaging Details:The normal package is wooden box(Size: L*W*H).
If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack
it according to customers special request.
Port :shanghai

OUR SERVICES

• The warranty period of all products sold by our company is one year,
  with lifelong technical service support.

• User's workers can get free technical training in our company to
  ensure correct usage and maintenance of equipment.

1. Do warp knits run easily?

In comparison with weft-knit structures, warp knits are typically run-resistant and are closer, flatter and less elastic.

How is warp knitting machine different from weft knitting machine?

Weft knitting and warp knitting are the two major varietiesof knitting. Weft knitting requires only a single yarn. One yarn for everystitch is used in warp knitting. Weft knitting is done either by hand ormachine whereas warp knitting is done by machine generally.

1. In weft knitting only one set of yarn is used that form courses along the weft wise direction of the fabric, while in warp knitting many sets of yarns is used coming from the warp-wise direction of the fabric.
2. Warp knitting differs from weft knitting, basically in that each needle loops has its own thread.
3. In warp knitting the needles produce parallel rows of loops simultaneously that are interlocked in a zigzag pattern, while in weft knitting the needles produces loops in the widthwise direction of the fabric.
4. In warp knitting the stitches on the face of the fabric appear vertically, but at a slight angle. While in weft knitting the stitches on the face of fabric appears vertically straight having v shaped.
5. Warp knits can yield cloth with a dimensional stability almost equal in woven fabrics, but in weft knits their very low dimensional stability and fabric can be stretched easily.
6. The production rate of warp knitting is very high than that of weft knitting.

7. Warp knits do not ravel or run and are less susceptible to sagging as compared to weft knits which are easily susceptible to snagging.
8. In weft knitting the needles move in the cams having tracks in a circular direction, while in warp knitting the needles are mounted on a needle board that can only move up and down.
9. In weft knitting the needles moves alternatively while in warp needles moves simultaneously.
10. Preparation of sectional beams are required for warp knitting whereas in weft knitting the yarn is directly taken from cones.
