PRODUCT DESCRIPTION
| Type | Size(L×W×H) | Weight(Kg) | Power(KW) | Speed(rpm) | |
| Main motor | Inching motor | ||||
| SROA-135 | 4300×1700×2300 | 4700 | 3 | 0.37 | 200-480 |
| SROA-150 | 4900×1700×2300 | 5000 | 3 | 0.37 | 200-480 |
| SROA-180 | 6100×1700×2300 | 7500 | 5.5 | 0.75 | 200-420 |
| SROA-220 | 7300×1700×2300 | 9000 | 5.5 | 1.5 | 200-420 |
| SROA-240 | 8200×1700×2300 | 10500 | 5.5 | 1.5 | 200-380 |
| SROA-260 | 10300×1700×2300 | 12000 | 7.5 | 1.5 | 200-380 |
Needle Type:Block latch needle ,individual latch needle or Compound needle
Gauge : E3,E6,E7,E8,E9,E12,E14,E16,E18
Number of bar : 2~8
Working Width : 135", 150", 170", 220", 240". 260"
Take-up manner: 2 rollers with friction drive, center shaft drive, 2 rollers with friction drive, separately-standing, center shaft drive, separately-standing
Relevant corollary equipment: Warping Machine
Application:This machine is used to produce Agriculture sun shine shade net, sports net ,purse net and deep sea aquaculture net and so on.
Feature:The machine is equipped with oiled eccentric gearing and the negative yarn let-off system.
PRODUCING LINE

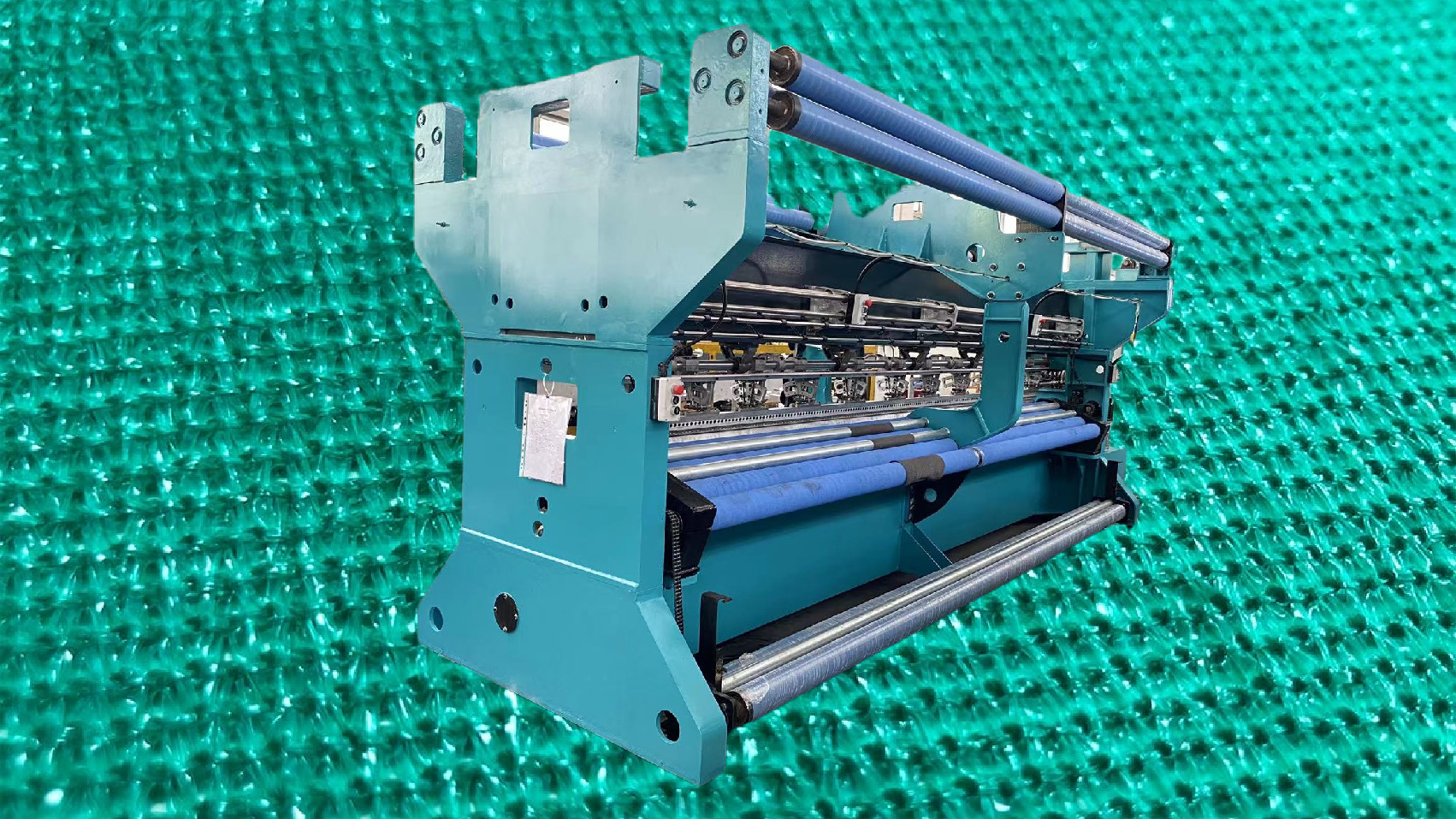

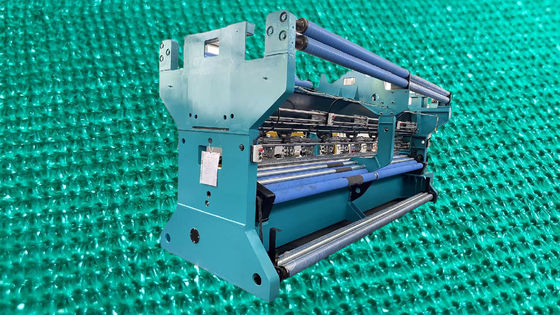

MACHINE PICTURE
NET SAMPLE
SHIPPMENT
COMPANY INTRODUCTION
Chenye is professional Raschel Knitting Machine manufacturer which has 27 years of experience in this field.Due to the good quality of products,the service ,Chenye is leading company in China Mainland.The products have been sold over 25 countries.
We are member of Chinese Fishing Boat&Gear Association which is the top technology of fishing machine in China.We want to continue innovating and develop new products to satisfy different customers' requirement.Lont-tern business is always Chenye's bussiness concept.It is Chenye's honor to keep offering the quality product and service for all customers.
EXHIBITION
